SEM922AWD

Key Specification
Advantage
Application

Standard (Operating Weight) : 16,560kg
Min. Turning Radius : 7.8m
Wheelbase : 6,140mm

High Productivity: Load sensing hydraulic system provides consistent and precise blade movement
High Reliability: A-frame designed drawbar provides strength in all blade positions
Comfort: World Class industry control layout with low lever efforts for reduced operator fatigue

Municipal Construction
Agriculture
Water Conservancy / Hydropower
Waste
Forestry

Feature
Specification
Product Comparison
Video
Download Brochure

SEM Tandem Axle

Leveraging Caterpillar designing and experience on MG tandem axle
Improved bearing Layout and optimized load distribution with 4 planetary gears final drive
Less down time and reduced labor and service cost for maintenance and repairing
Longer service interval for lubrication oil change
Leading in class manufacturing and quality control level, mandatory　 performance testing before delivering to MG assembly line

Control System

7 position link bar with electric over hydraulic control allows ease of operation from within the cab
Optimum blade reach capability, quick DCM re-positioning for greater reach for better working on high bank side slope
The link bar is essential for extending reach capability when cutting a bank slope or back slope of a ditch
Replaceable bushings reduce service time and cost

Blade Float

Standard blade float function allows blade to lower without hydraulic pressure for increased versatility
Blade float is engaged by pushing the left and right lift cylinder controls all the way forward past the detent
Provides protection for machine and pavement during snow removal and snow plowing

Hydraulic System

Proportional Priority Pressure Compensating (PPPC) Valves contain specifically cut spools for motor grader applications, continuously matching of hydraulic flow and pressure to power demands, allowing ease of multi-function control for optimizing working efficiency
World-class variable displacement piston pump, efficiently reduces power consumption and hydraulic system heat, improving fuel efficiency
Load-sensing hydraulic system provides consistent and precise blade movement, improving finishing performance
Inboard lock check valves within PPPC, prevents inadvertent cylinder movement and potential leaks

Drawbar

A-frame tubular design drawbar provides maximum strength and durability
Replaceable drawbar draft ball (bolted – not welded) for less service time and cost
Easy removal of wear shims to adjust drawbar

Front Frame

Flanged box section design removes welds from high stress areas, improving reliability and durability
Continuous top and bottom plate construction provides consistency and strength, improving front frame durability
Hydraulic hose routing minimizes exposure to damage and provides quick access forservice
Maintenance-free bushings improve durability and reduce overall service cost

Control Layout

Short throw levers are efficiently spaced, allowing ease of multi-function control
Short lever travel (40mm) with low lever effort reduces operator fatigue

All Wheel Drive (922 AWD)

All wheel drive (AWD) function designed for poor underfoot applications (snow, sand, gravel, mud, etc.)
Infinitely variable speed pumps and two-speed motors maximize torque in each gear delivering the most power to the ground
Exclusive steering compensation system enables a “powered turn” with improved control and a dramatic reduction of turning radius in poor underfoot conditions

Cat ® Product Link™

Cat ® Product Link™ will support your business, and accurately convey information of the equipment to relevant personnel in a timely and effective manner for your better equipment management.

Large Cab

High performance dashboard with 3 levels alarming monition system
Cab mounted on the front frame provides exceptional view to blade and front axle even during articulation
Large cab with 1.9m height and 30% larger space than most competitors, provides exceptional comfort


Model	SEM922AWD
Operating Weight
Standard	16,560kg
With Front & Rear Counterweight	16,560kg
With Front Blade	17,260kg
With Ripper+Front Blade	17,970kg
Operating Specifications
Top Speed, Forward	40kph
Top Speed, Reverse	25kph
Min. Turning Radius	7,800mm
Articulation Angle, Left /Right	20°
Gradeability	30°
Wheelbase	6,140mm
Travel Speed, Forward	5.3/9.1/12/20/25/40kph
Travel Speed, Reverse	5.3/12/25kph
Drawbar Pull	Front 28 / Rear 92
Engine
Engine Manufacturer	SDEC
Engine Model	SC9DK220G2
Rated Power	162 @ 2,200kW @ RPM
Max. Torque	920 @ 1,400kN @ RPM
Emission	Tier 2
Displacement	8.82L
Bore	114mm
Stroke	144mm
Number of Cylinders	6
Transmission
Brand / Manufacturer	Advance / Hangchi
Brand / Manufacturer
Type	6WG180
Powershift Pressure	1.3~1.7MPa
Forward / Reverse Gears	6 Forward/ 3 Reverse
Tandem Axle
Brand / Manufacturer	SEM / Caterpillar
Model	ST23
Differential	No-Spin
Service Brake	Air to Oil, Disc
Secondary	Dual Circuit
Oscillation Front Up	15°
Oscillation Front Down	25°
Front Axle
Ground Clearance	602mm
Wheel Lean, Left / Right	18°
Max. Oscillation	±16°
Steering Range, Left / Right	47.5°
Hydraulic System
Circuit Type	Load sensing,PPPC
Pump Type	Variable Piston
Max. Pump Output	162.8L/min
Max. System Pressure	22MPa
Standby Pressure	2.4~2.6MPa
Moldboard
Blade Width, Standard	4,279mm
Blade Width, Optional	3,669/3,974mm
Moldboard Height	610mm
Moldboard Thickness	25mm
Throat Clearance	85mm
Float Function	STD
Moldboard Sideshift, LH	948.5mm
Moldboard Sideshift, RH	824.5mm
Circle Centershift, LH	926mm
Circle Centershift, RH	758mm
Max. Blade Position Angle	90°
Blade Tip, Forward	40°
Blade Tip, Backward	5°
Max. Shoulder Reach outside of Tires, LH	2,560mm
Max. Shoulder Reach outside of Tires, RH	2,269mm
Max. Lift above Ground	475mm
Max. Cutting Depth	715mm
Max. Lifting Height	475mm
Max. Draw-Pull	Front≥26 Rear Axle≥86kN
Service Refill Capacity
Fuel Tank	240L
Engine Oil	22L
Coolant	65L
Transmission	28L
Differential Case	33L
Tandem Case, Each Side	62L
Circle Drive, Non Slip Clutch	2L
Circle Drive, With Slip Clutch	7L
Hydraulic Oil Tank	65L
Rear Axle (Main Reducer & Tandem)	157L

SEM922AWD-TV-Showin-Uruguay

MG Maintenance

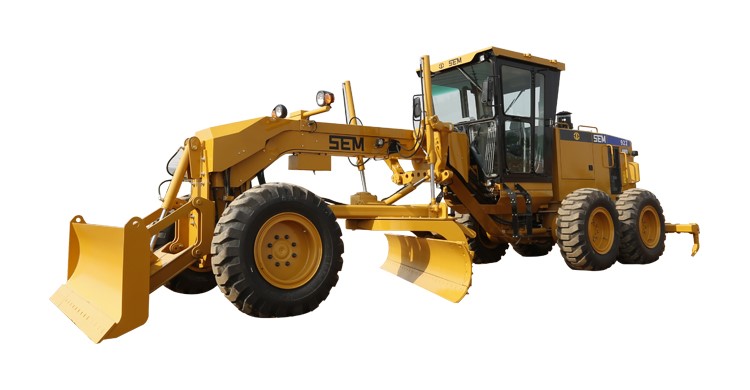

SEM922AWD-1

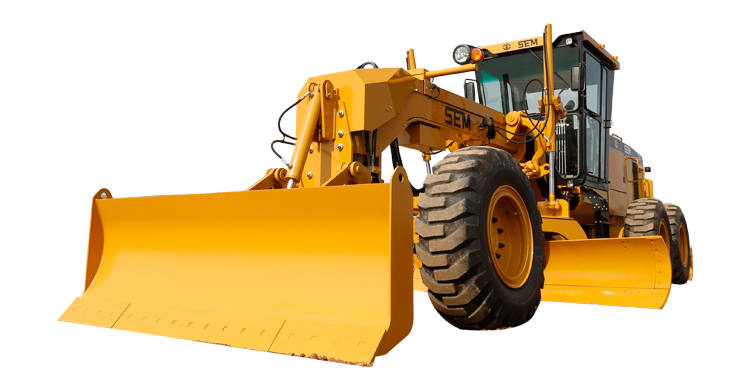

SEM922AWD-2

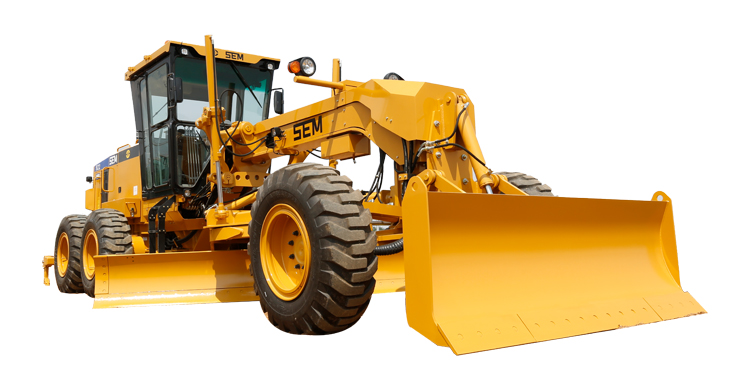

SEM922AWD-3
