SEM 676F

Key Specification
Advantage
Application

Rated Load: 7,100 (for Std. Linkage) kg
Operating Weight with Standard Bucket: 23,350kg / 23,550kg (with ROPS)
Bucket Capacity: 4.2-6.5m³

Easy To Operate
Low Cost Per Hour
Proven Reliability
Service Convenience
Safety

Quarry
Sand & Gravel
Coal
Mining
Port
Heavy construction

Feature
Specification
Product Comparison

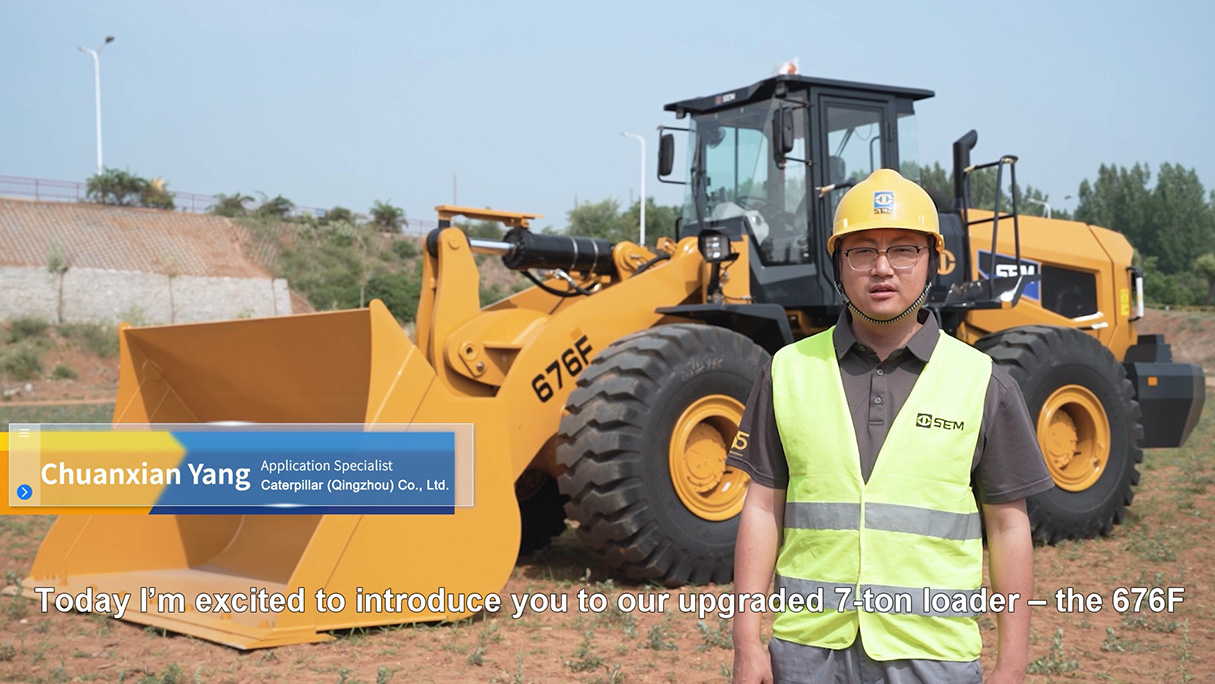

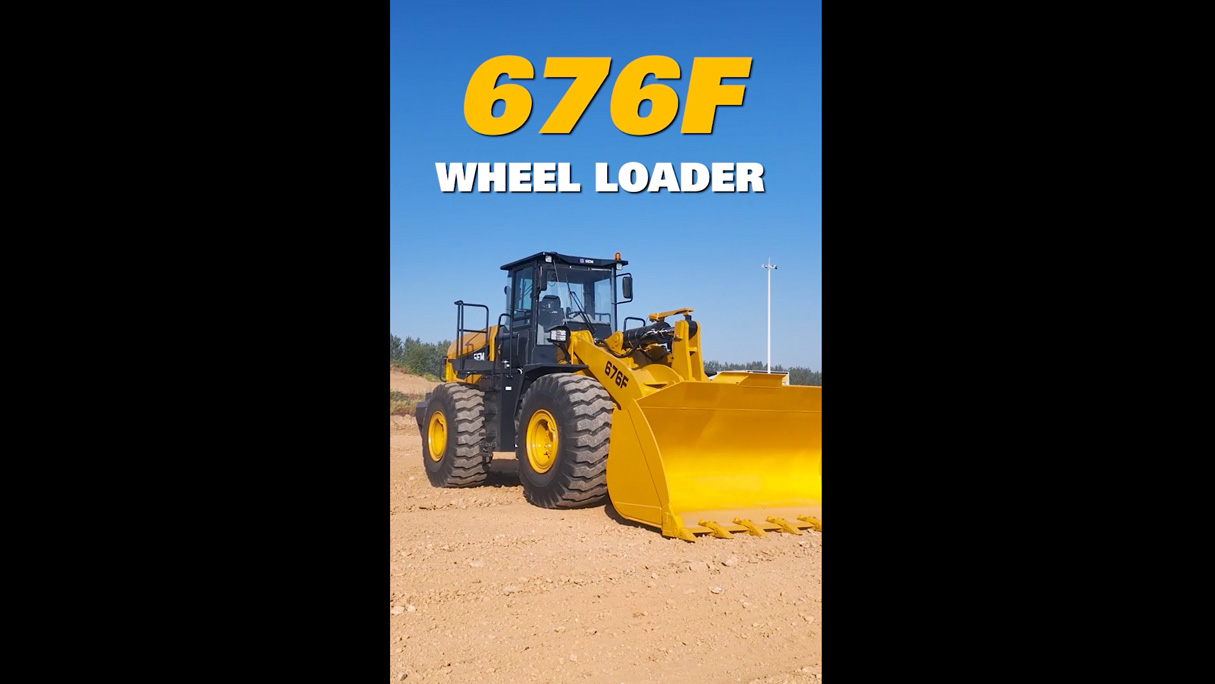

Video
Download Brochure

SEM 676F is primarily designed for customers who are seeking lower purchase and operation costs, while prioritizing machine reliability, ease of operation, and serviceability.

Embracing the new F series machine styling and enhanced comfort cab, the 676F is powered by a Weichai Tier III engine and features Caterpillar proven electrohydraulic control countershaft transmission and in - house heavy duty tailored dry brake axle. The machine is equipped with an advanced single load sensing hydraulic system, ensuring commendable fuel efficiency, while the gear shifting kick-down function, FNR button and kickout sensor reduce operator fatigue and improve operational comfort.

In addition to guaranteeing exceptional reliability, the 676F maximizes operational efficiency, significantly enhances customer ROI and reduces machine operation and ownership costs throughout the service life.The model inherits advanced industry technologies and integrates high-reliability critical components. With outstanding technical parameters, it offers key features that translate into substantial benefits for customers.

Easy To Operate

Integrated FNR controller and KD button simplifies operations.
Automatic gear shifting function improves both efficiency and comfort.
A large-displacement coaxial flow steering unit delivers superior maneuverability.
The integrally molded cab provides ample space and outstanding visibility.

Low Cost Per Hour

The single load sensing hydraulic system ensures fuel savings of 8-12%.
The performance series bucket increases material load capacity by 10%.
Caterpillar split transmission pump technology contributes 6% fuel saving.

Proven Reliability

A 3.55-meter super-long wheelbase enhances machine stability.
Caterpillar designed and manufactured electrohydraulic control transmission ensures high reliability.
Tuned gearshift smoothness and a self-protection function guarantee exceptional durability.
SEM customized Weichai engine optimally matches the machine systems to generate robust power.

Easy to Operate

The FNR gear controller and KD button are integrated onto the right pilot control joystick, allowing operators to keep their left hand on the steering wheel for easier operations.
Automatic gear shifting (2^nd to 4^th) function and E-control automatic leveling function enhance both working efficiency and operating comfort.
Enhanced maneuverability and smooth steering are achieved through the large-displacement coaxial flow steering unit.
Equipped with an electronically controlled automatic leveling function, operators can freely define bucket lifting and tilting positions based on the working conditions.
The integrally molded cab offers ample space (20% wider than 676D) and excellent visibility. The fresh air pressurization function maintains a cleaner cab, while the multi-air-vent design improves defrosting performance and enables faster temperature adjustment.

Low Cost Per Hour

The Weichai WP10G270 Stage III engine, boasting high torque and an electromagnetic fan, delivers 199 kW power. Its 4-valve design ensures ample air intake and higher fuel efficiency.
Engine versatility with 2 adjustable power modes (Economy and Power), allows customers to select the most suitable mode based on working conditions, effectively reducing fuel consumption.
Caterpillar split pump delivers oil separately to the transmission and torque converter, reducing fuel consumption by 6%.
The single load sensing hydraulic system enhances working efficiency by providing additional traction force to the tires when the hydraulic system operates insufficiently. It optimizes fuel consumption by providing flow and pressure only when necessary, resulting in an 8-12% fuel saving and reduced load on the cooling system.
The hydraulic system ensures faster hydraulic motions, achieving a total cycle time of 9.8 s.
The performance series bucket increases material loading capacity by 10% and facilitates easy material pile insertion, effectively reducing fuel consumption.
With an articulated frame and 50/50 distribution, the machine offers a short turning radius and minimizes tire wear, while the 26.5-25 tube bias tires provide higher traction force and lower maintenance costs.

Proven Reliability

The TR240-EH electrohydraulic control transmission, designed and manufactured by Caterpillar, offers high reliability and minimal maintenance costs.
Professionally tuned gearshift smoothness and self-protection function ensure exceptional transmission durability. Caterpillar ROMAX analysis and validation further guarantee high reliability and efficiency.
The advanced transmission sensing system delivers both high reliability and flexible response.
The SEM customized 2,200 rpm Weichai engine optimally matches the machine systems, providing robust power while lowering fuel consumption.
With a three-stage air filter design, the first-stage filter element boasts a filtration efficiency of up to 93%, reducing early wear by 90%. Additionally, the optional oil bath filter offers lower maintenance cost for customers working in severe conditions.
Caterpillar technology, including C-link (Dynamic fatigue strength analysis and performance optimization), FEA (Finite Element Analysis), and OMSA (On Machine Stress-strain Analysis), significantly ensures the reliability and lifespan of the machine chassis.

Service Convenience

The frame comes equipped with centralized lubrication points, and an optional automatic lubrication system is available for simplified maintenance.
To facilitate malfunction diagnosis and oil sampling, pressure test ports are provided.
The large-span central articulation design not only simplifies maintenance but also reduces space requirements on-site.
A simple and reliable powertrain design ensures lower customer operation and ownership costs.
The engine hood features a large opening side door, making it easier to access maintenance and service points.
With a 357 L super-large fuel tank, extended operating time is guaranteed.

Safety

A gear lock ensures the machine can only be started when it's in the neutral position to prioritize safety.
The double-circuit brake system enhances safety, and an optional brake drier further improves the machine's operational safety.
Optional ROPS/FOPS cab provides enhanced protection for operators.
An optional rear camera ensures excellent visibility from the cab.
The three-point contact design for entering and exiting the cab ensures the driver's safety during access.
Maintenance-free battery, backup alarm, beacon alarming, and other features prioritize the operator's daily operational safety.
With six front and four rear brake calipers, the machine guarantees optimal braking performance and reduces the risk of overheating.

Model
Model	SEM 676F
Main Specifications
Rated Load	7,100 (for Std. Linkage)kg
Operating Weight with Standard Bucket	23,550kg (with ROPS)
Bucket Capacity	4.2-6.5m³
Wheel Base	3,550mm
Overall Dimension	9,012* 3,259*3,529mm
Max. Drawbar Force	215kN
Breakout Force	215kN
Dump Clearance	3,250mm
B-Pin Height	4,411 (for Std. Linkage)mm
Transmission
Transmission Type	EH countershaft. power shift
Transmission Gears	F4/R3
Torque Converter Type	Single stage, 3 elements
Forward I/Reverse I	7.1/7.1km/h
Forward II/Reverse II	12.7/12.7km/h
Forward III/Reverse III	23.8/23.8km/h
Forward IV	39km/h
Maker & Type	SEM TR240
Axle (Axle, Tire & Brakes)
Main Drive Type	Spiral bevel gear, single stage
Final Drive Reduction Type	Planetary type, single stage
Rear- oscillation +/-	±11°
Engine
Engine Model	WP10G270
Rated Power	199kW
Rated Speed	2,200r/min
Displacement	9.7L
Implement Hydraulic System
Implement System Type	Open center filow sharing
Boom Raise Time	5.7s
Hydraulic Cycle Time	9.8s
System Pressure Setting	24MPa
Brake System
Service Brake	Dry & caliper, air to oil control
Parking Brake	Drum/Shoe
Steering System
System Type	Load sensing
Steering Pump Type	Piston pump
System Pressure Setting	20MPa
Steering Angle (L/R)	35±1°
Tires
Size	26.5-25
Type	Bias
Layer	24
Textured Type	L-3
