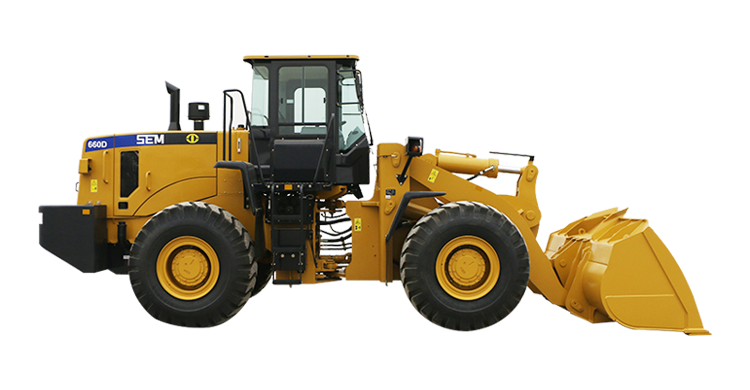

SEM660D

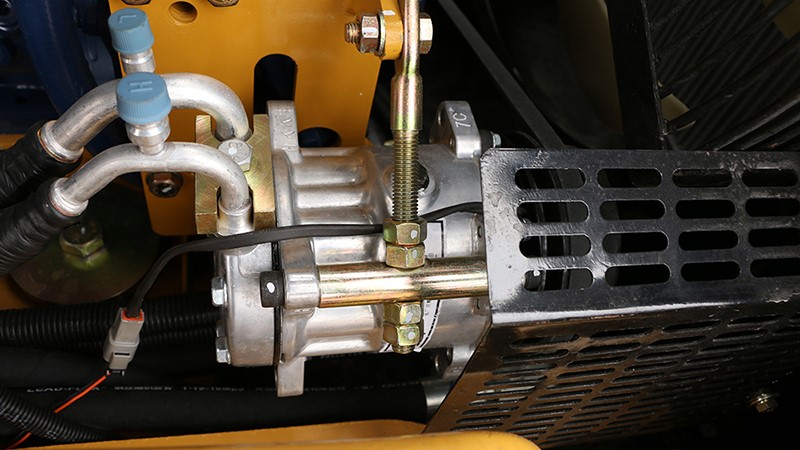

Low speed engine with E-fan provides increased operating efficiency
Enhanced fuel pre-filter eliminates water and contaminant from fuel for best fuel system protection
The 93 desert type air cleaner provides machine reliability in most severe applications. Oil-bath type oil filter is optional

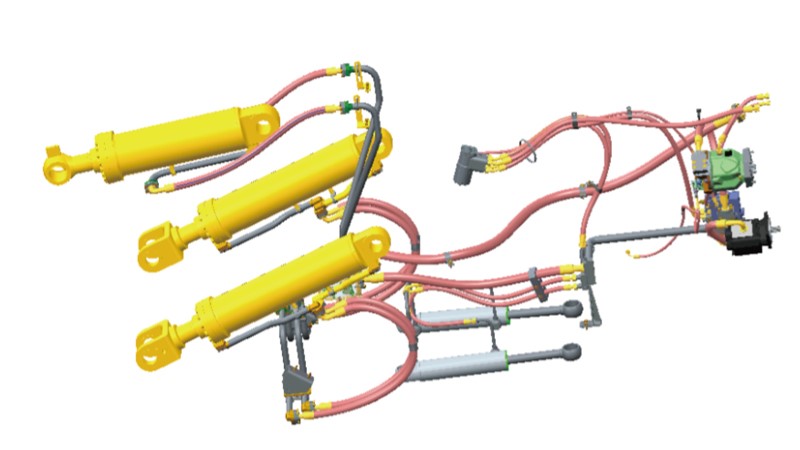

The advanced load sensing hydraulic system with flow sharing circuits improves efficiency
World Class hydraulic components ensure high reliability
The optimized hydraulic system paired with the drive train reduces machine cycle time and increases productivity
Relocated hydraulic oil tank ensures hydraulic pump's life

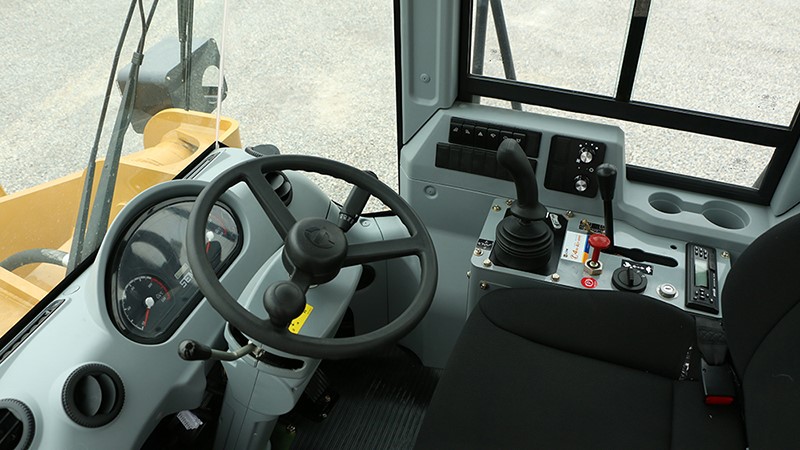

Premium operator station improves cab sealing and visibility
Sliding side window and AC with fresh air circulation provide operator comfort

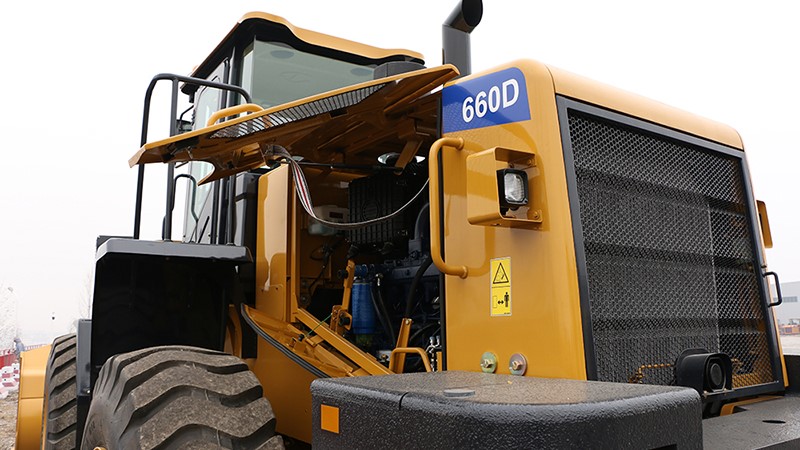

Integrated relays and fuse panel. Single cabin harness connection plug provides easy service access
Joystick hydraulic control for easy and precise operation
Multi-function instrument dashboard with 3-level alarm
Adjustable suspension seat

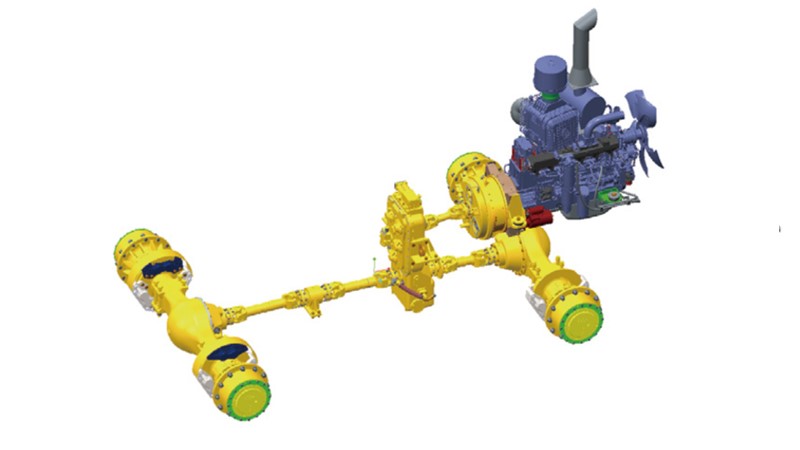

Countershaft transmission with upgraded core components provides high reliability
Large rim-pull in 1st gear and higher speed in 2nd gear provide high efficiency for load and carry applications
Clutch cutoff selection switch ensures stable and safe operation
The SEM designed and built axle equips with 10 calipers (6 for front and 4 for rear), it delivers better brake performance and longer service life

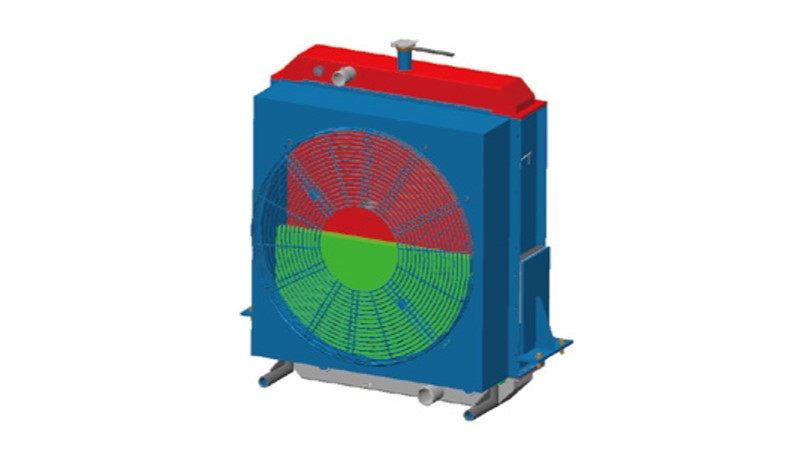

The standard cooling package provides high reliability in 43°C ambient conditions. An optional package is available for 50°C ambient conditions
Shock pad mounts ensure reliability under severe applications

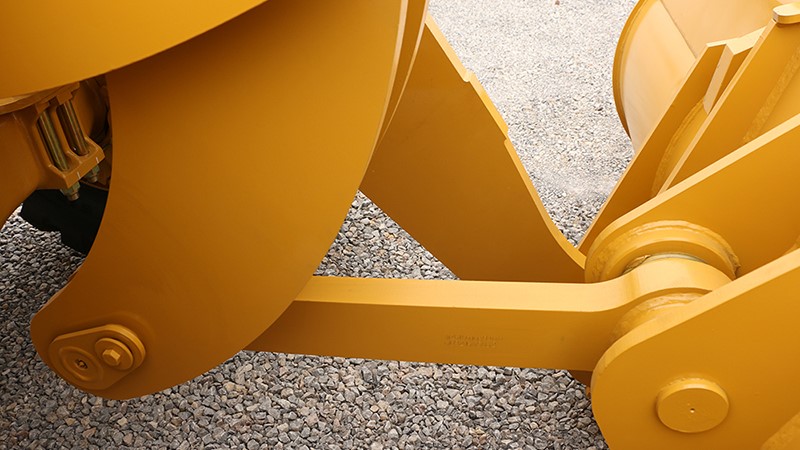

Structures undergo Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to ensure durability
Performance Series (PS) buckets improve loading capability
Steering robber stopper design provides protection for frame

SEM660D can be widely used in port cargo handling mineral yards, steel mill,and other high productivity demand applications

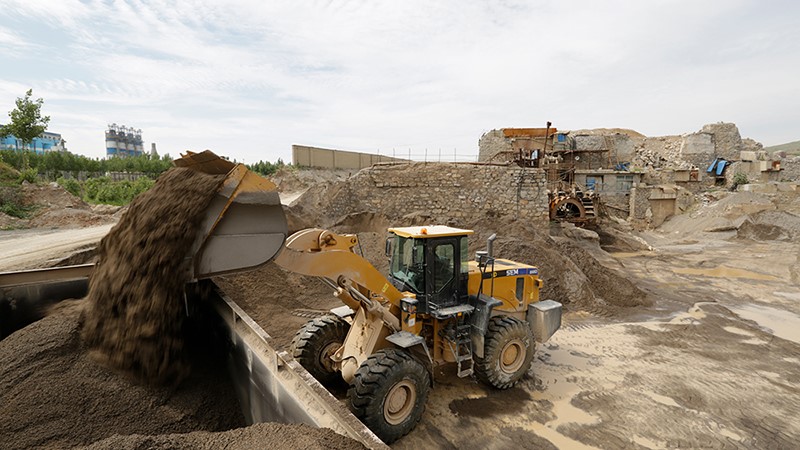

In aggregate site, coal loading and construction etc loosen material handling utilization applications,SEM660D can load more, move faster and burn less
Multiple work tools for selection

Model
Model	SEM660D	SEM660D for EAEU
Main Specifications
Rated Payload	6,000kg	6,000kg
Operating Weight with Standard Bucket	20,000kg	20,300kg
Bucket Capacity	3.3-5.5m³	3.3-5.5m³
Operating Specifications
Breakout Force	183kN	197kN
Max. Drawbar Force	194kN	194kN
Transmission
Transmission Gears	F4/R4	F4/R4
Torque Converter Type	Single Stage, 3 Elements	Single Stage, 3 Elements
Max Speed	38km/hr	39km/hr
Maker & Type	TR200	TR200
Axle (Axle, Tire & Brakes)
Rear- oscillation +/-	±11°	±11°
Engine
Engine Model	WD10G240	WD10G240
Rated Power	178kW	178kW
Rated Speed	2,000r/min	2,000r/min
Displacement	9.7L	9.7L
Emission	T2/Stage2	T2/Stage2
Implement Hydraulic System
Implement System Type	Single Load Sensing Flow Sharing System	Single Load Sensing Flow Sharing System
Hydraulic Cycle Time	9.7s	9.7s
System Pressure Setting	18Mpa	18Mpa
Raise	5.3s	5.3s
Brake System
Service Brake	Dry & Caliper, Air to Oil Control	Dry & Caliper, Air to Oil Control
Parking Brake	Drum type shoe brake,spring applied & oil released
Service Refill Capacity
Fuel Tank	252L	252L
Engine Lubricating Oil	21L	21L
Hydraulic System	165L	165L
Transmission Oil	53L	53L
Tires
Size	23.5-25	23.5-25
Type	PR20 Bias	PR20 Bias

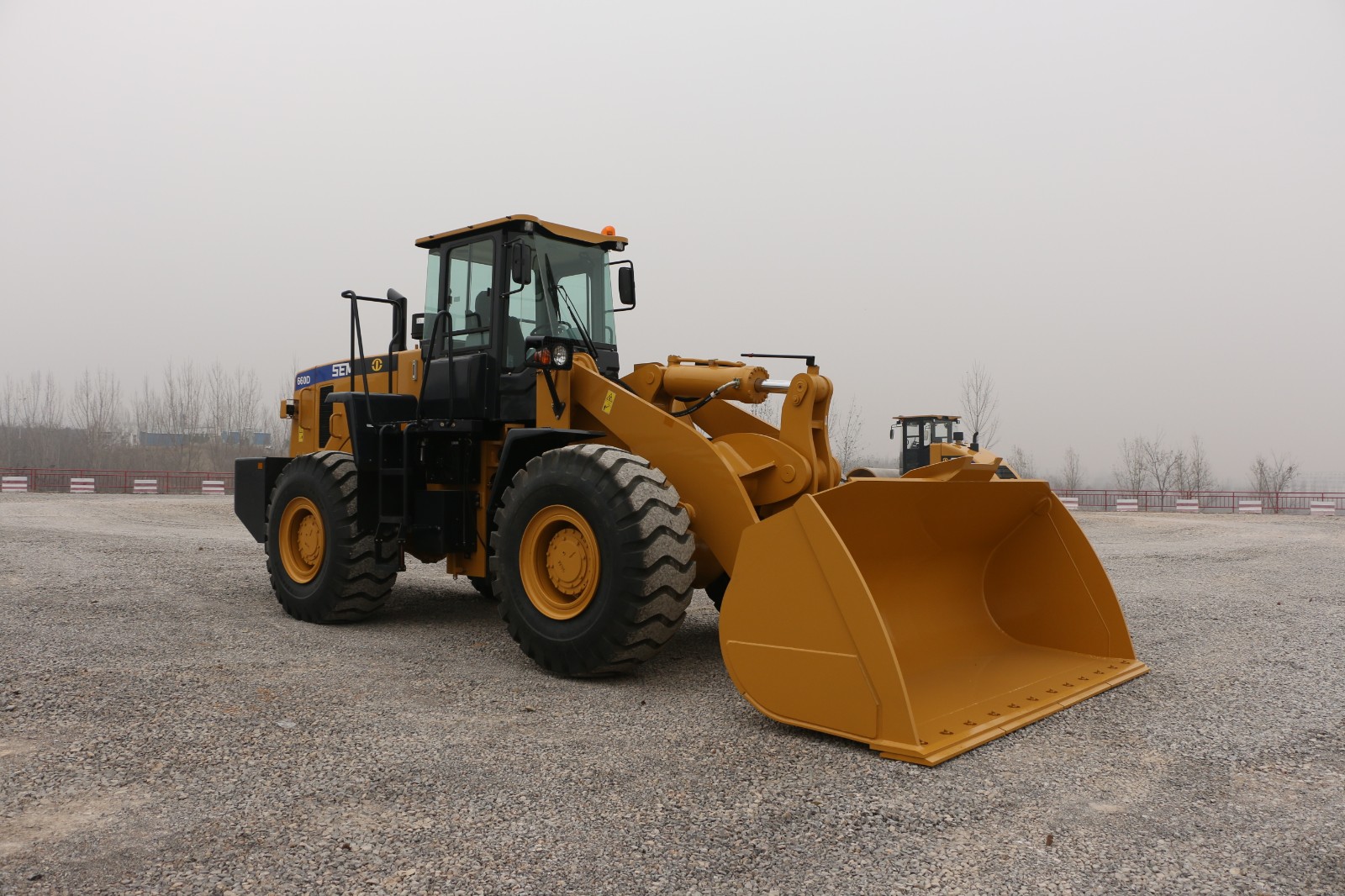

SEM660D-1

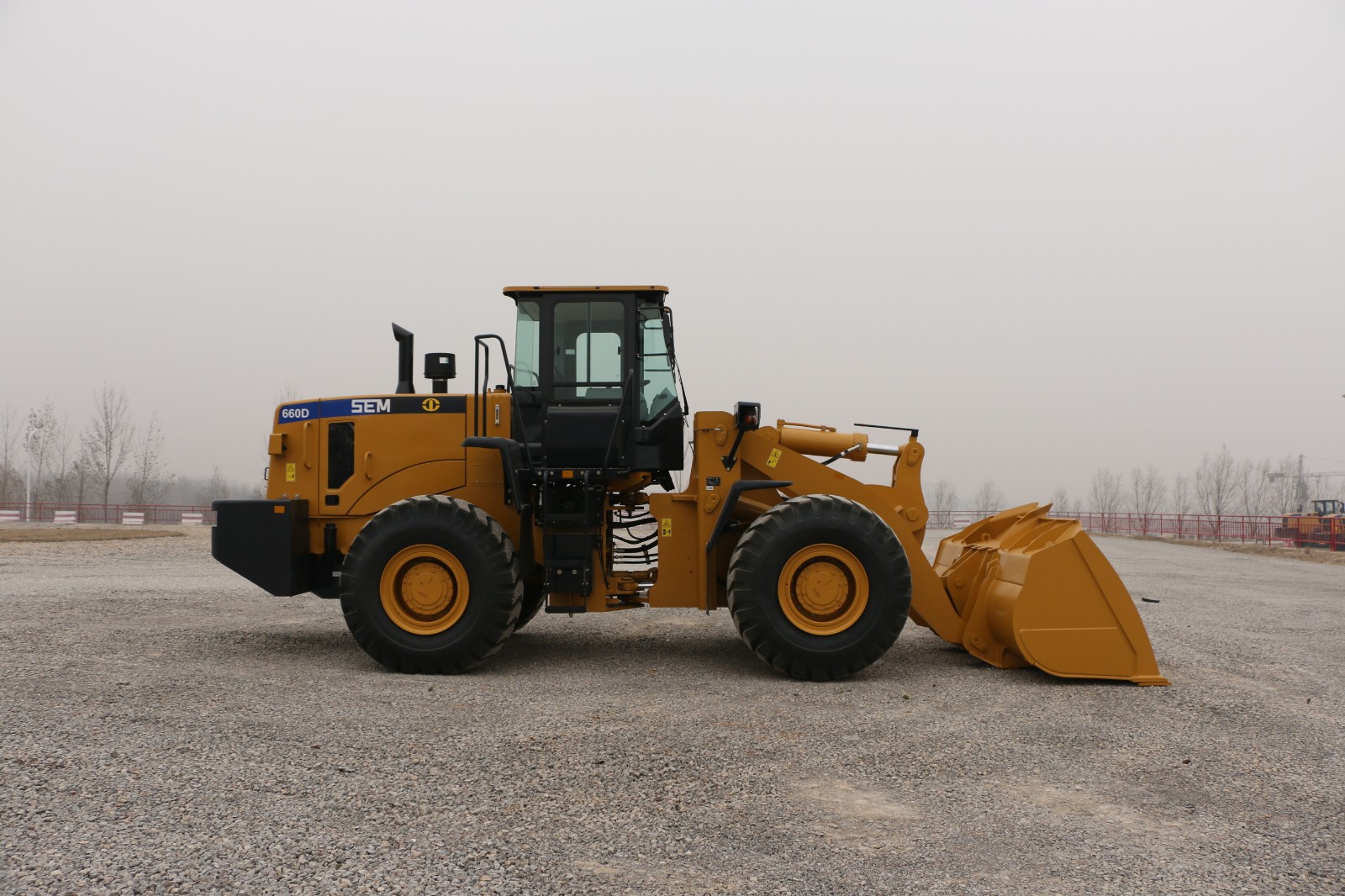

SEM660D-2

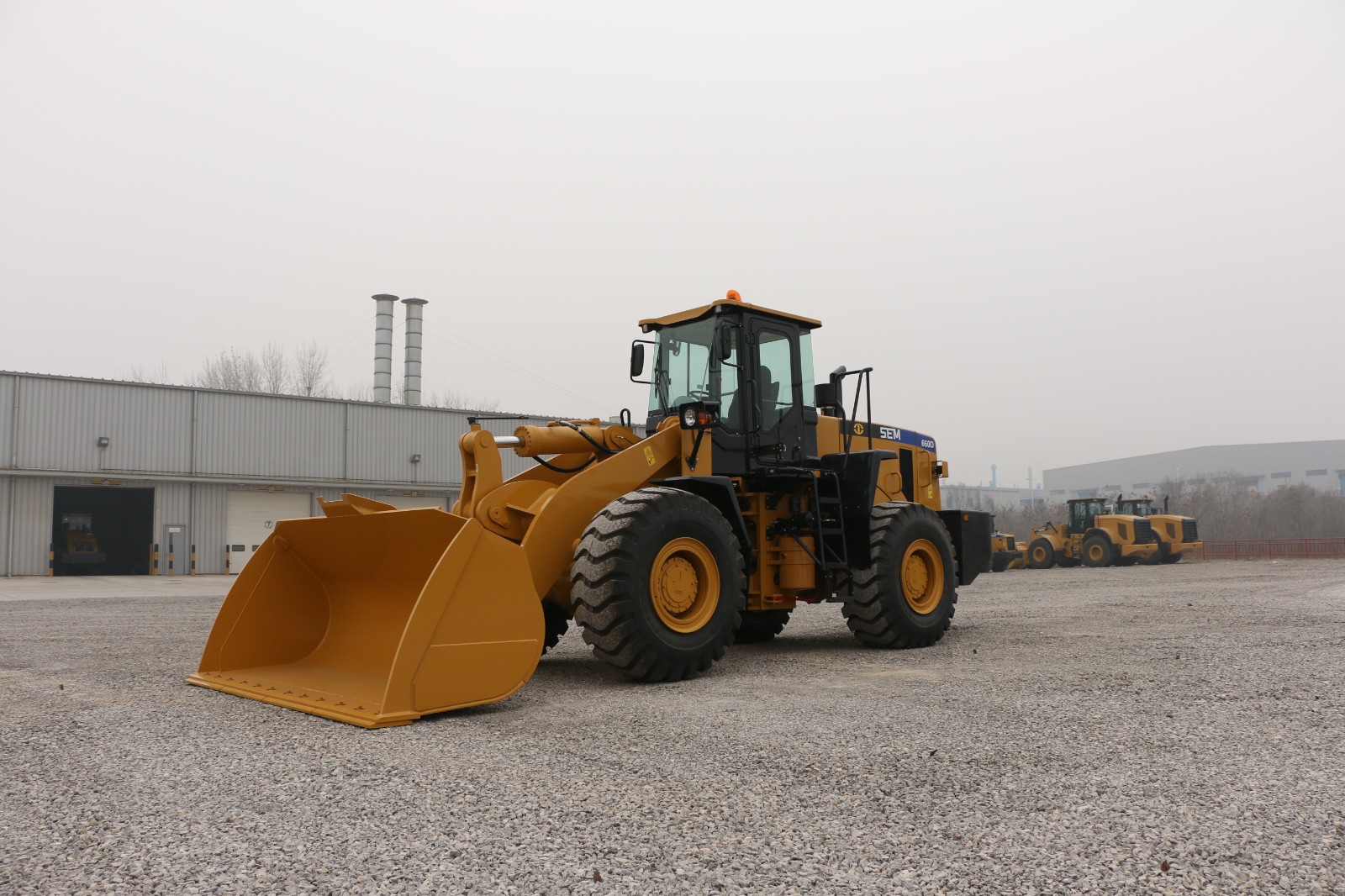

SEM660D-3

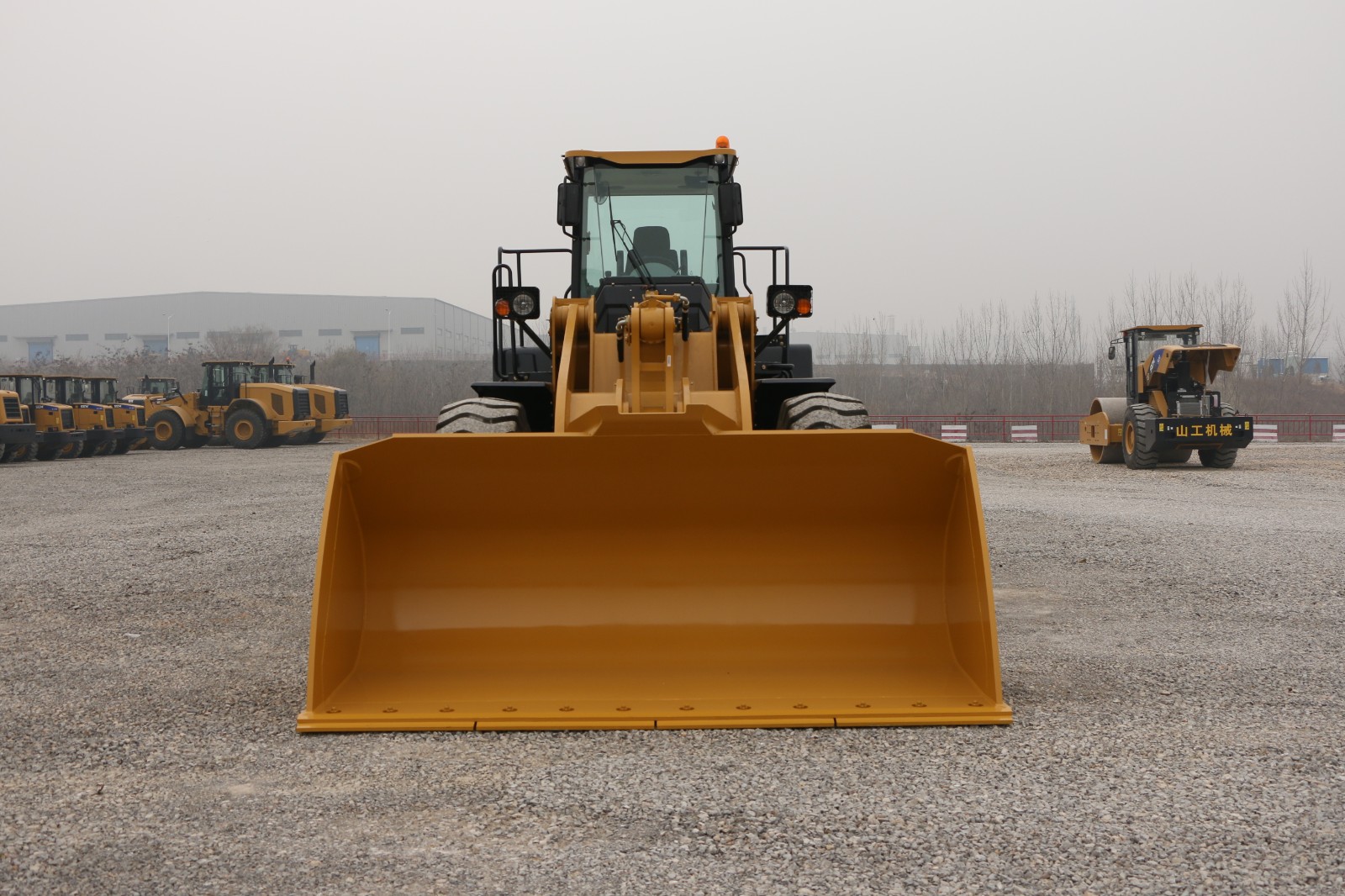

SEM660D-4

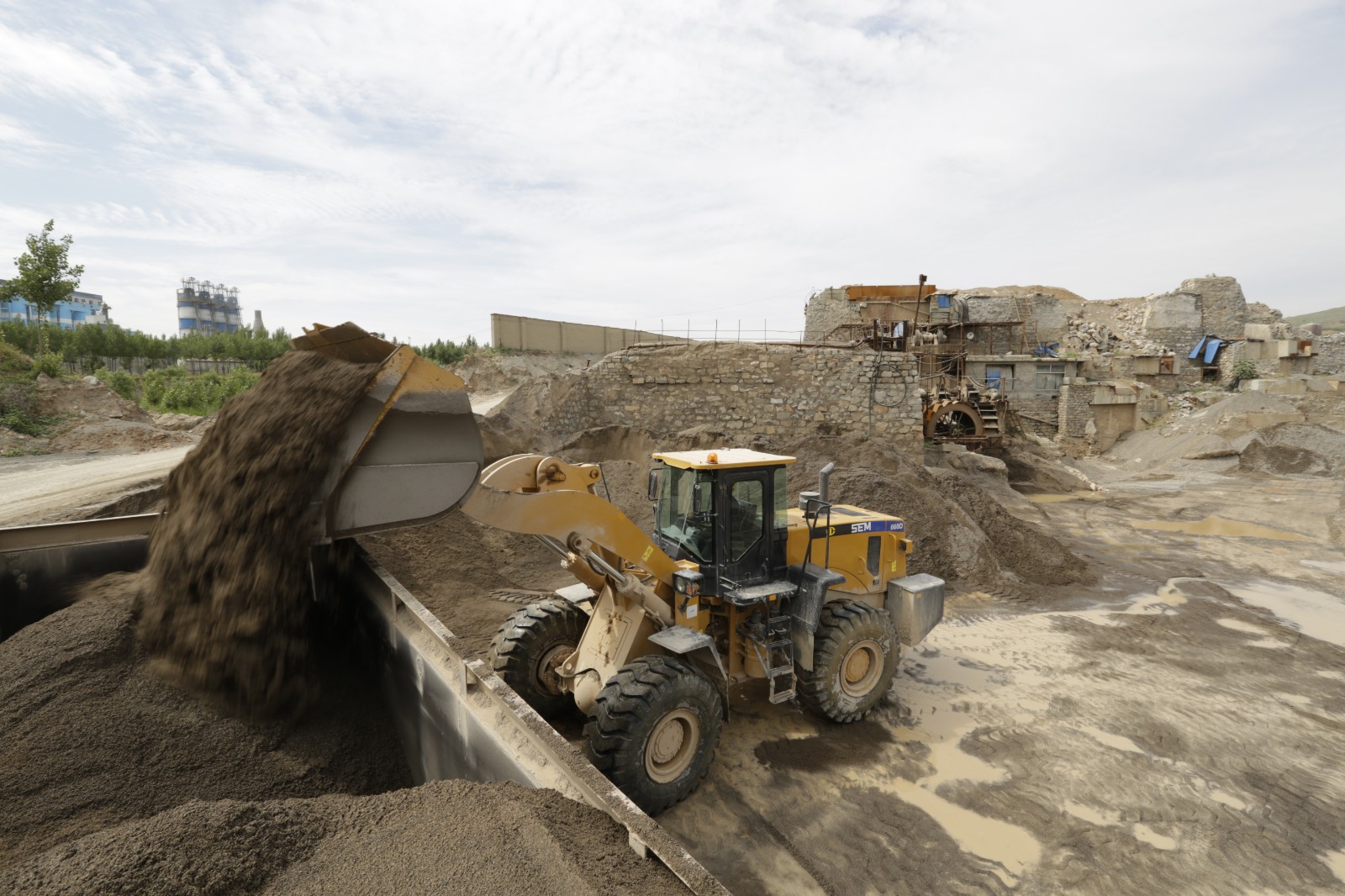

SEM660D Application-1

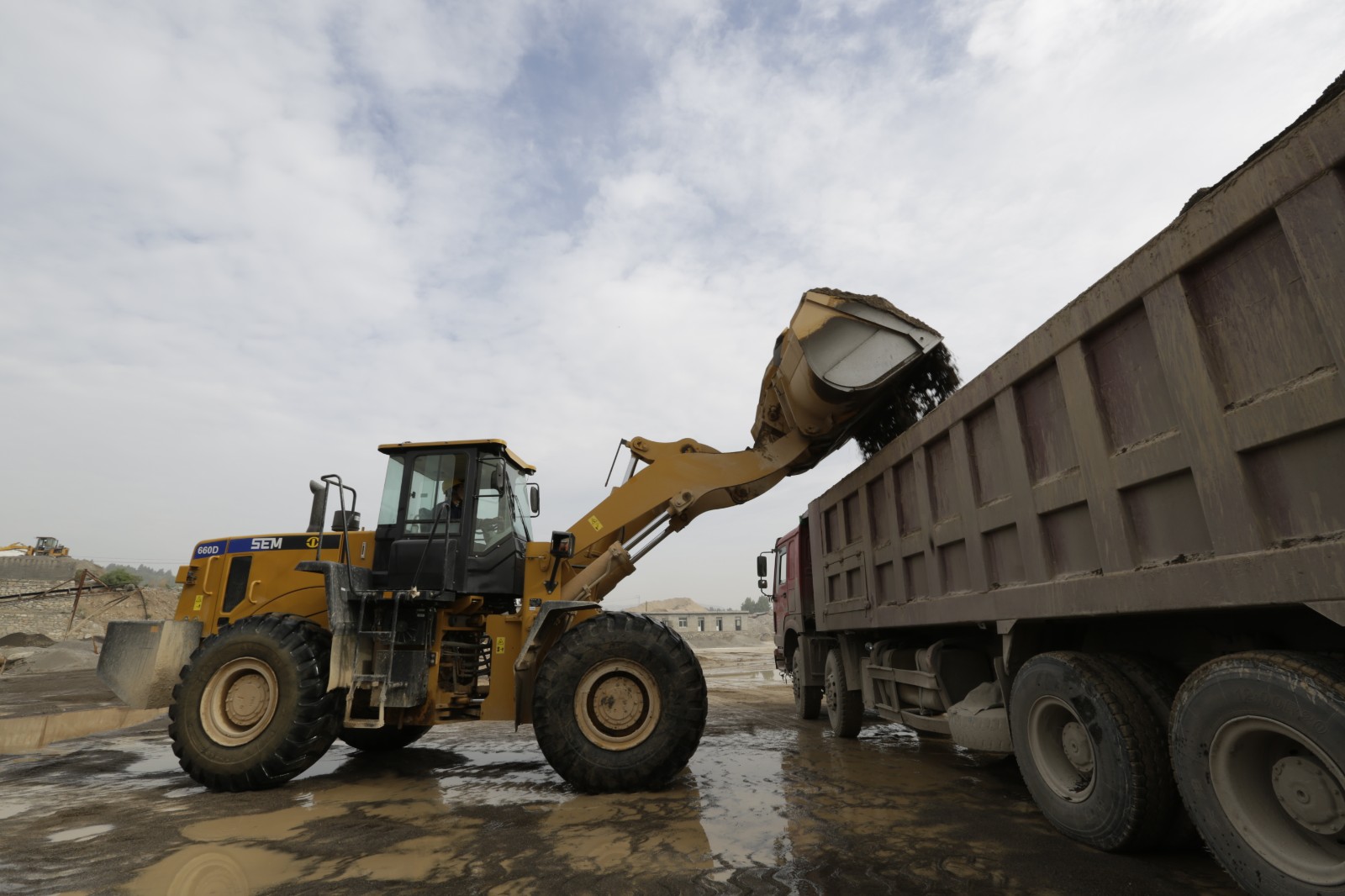

SEM660D Application-2

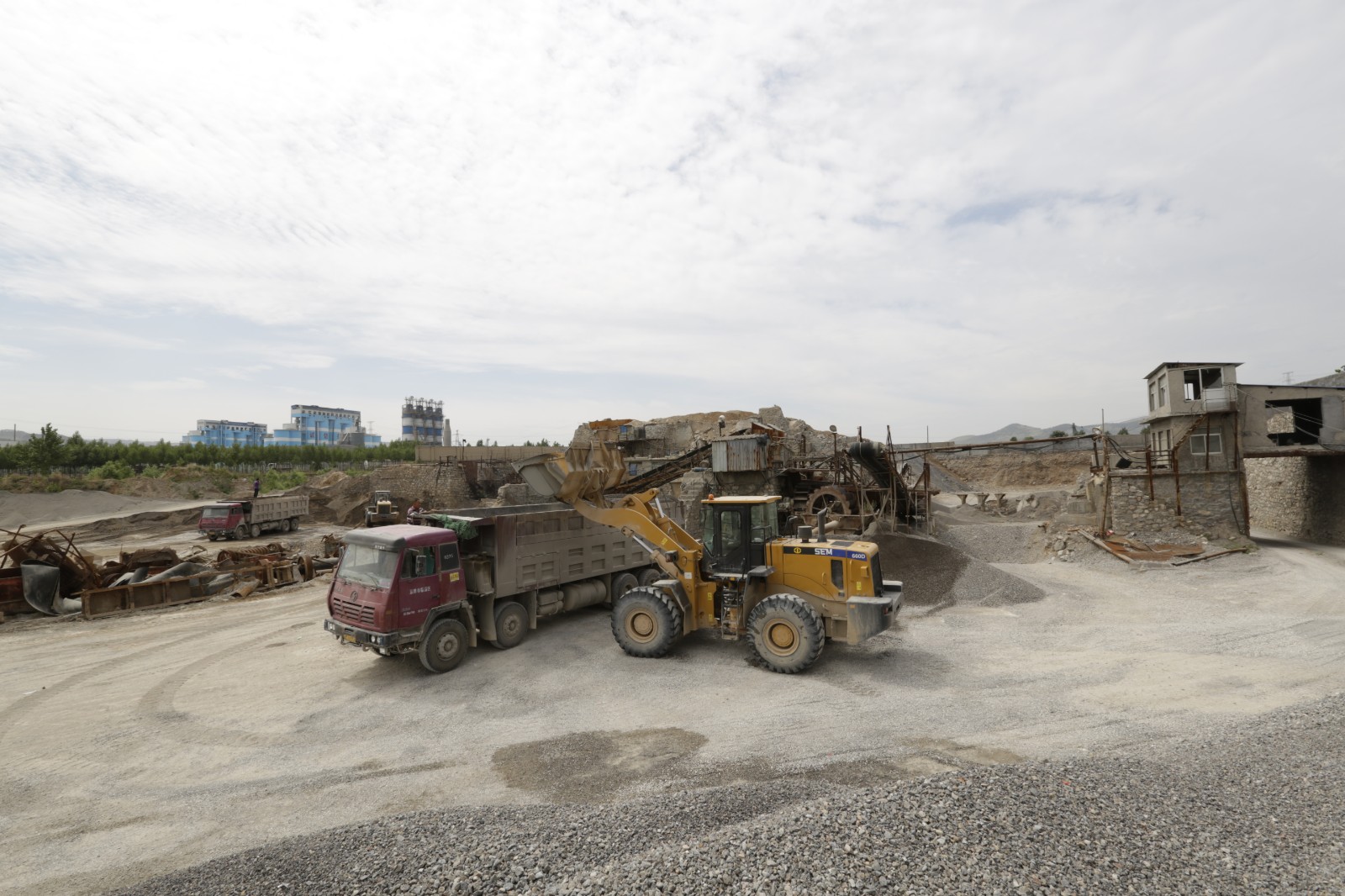

SEM660D Application-3
