SEM_PRODUCTS_SEM660D
  • SEM_PRODUCTS_SEM660D
SEM_PRODUCTS_SEM660D

SEM660D

  • Key Specification
  • Advantage
  • Application
    • Rated Payload ： 6,000kg
    • Operating Weight with Standard Bucket ： 20,000kg
    • Bucket Capacity ： 3.3-5.5m³
    • High Productivity
    • Best-in-class Reliability and Durability
    • Excellent Fuel Economy
    • Outstanding Operation Comfort
    • Railway / Highway / Airport
    • Port
    • Quarry
    • Municipal Construction
    • Agriculture
    • Water Conservancy / Hydropower
    • Waste
    • Coal
    • Forestry
    • Log Grapple
    • Concrete
    • Tunnel
    • Iron & Steel
Product Comparison Inquiry Download Brochure
  • Feature
  • Specification
  • Product Comparison
  • Video
  • Photo
  • Download Brochure

Optimized Engine

  • Low speed engine with E-fan provides increased operating efficiency
  • Enhanced fuel pre-filter eliminates water and contaminant from fuel for best fuel system protection
  • The 93 desert type air cleaner provides machine reliability in most severe applications. Oil-bath type oil filter is optional

Efficient Hydraulic System

  • The advanced load sensing hydraulic system with flow sharing circuits improves efficiency
  • World Class hydraulic components ensure high reliability
  • The optimized hydraulic system paired with the drive train reduces machine cycle time and increases productivity
  • Relocated hydraulic oil tank ensures hydraulic pump's life

Operator Station

  • Premium operator station improves cab sealing and visibility
  • Sliding side window and AC with fresh air circulation provide operator comfort
  • Integrated relays and fuse panel. Single cabin harness connection plug provides easy service access
  • Joystick hydraulic control for easy and precise operation
  • Multi-function instrument dashboard with 3-level alarm
  • Adjustable suspension seat

Reliable Drivetrain

  • Countershaft transmission with upgraded core components provides high reliability
  • Large rim-pull in 1st gear and higher speed in 2nd gear provide high efficiency for load and carry applications
  • Clutch cutoff selection switch ensures stable and safe operation
  • The SEM designed and built axle equips with 10 calipers (6 for front and 4 for rear), it delivers better brake performance and longer service life

Advanced Cooling System

  • The standard cooling package provides high reliability in 43°C ambient conditions. An optional package is available for 50°C ambient conditions
  • Shock pad mounts ensure reliability under severe applications

Solid Structure

  • Structures undergo Finite Element Analysis (FEA) and On Machine Stress Analysis (OMSA) to ensure durability
  • Performance Series (PS) buckets improve loading capability
  • Steering robber stopper design provides protection for frame

Serviceability

  • Torque convertor is isolated from transmission making it easy to service
  • Simple structure countershaft transmission delivers low maintenance cost
  • Centralized lubrication points reduce maintenance time
  • System pressure test ports are standard
  • Easy access to external air charge connecting port
  • Engine hood grill opens for easy service access
  • It is easy to change brake discs with new split type caliper

Safety

  • Safety design complies with all regulatory requirements
  • Caterpillar Production System (CPS) leveraged in manufacturing process
  • 3-point touching design provides convenient operator entering to cabin
  • Backup alarm and beacon ensure machine safety
  • Environment-friendly painting process

Multiple Applications

  • SEM660D can be widely used in port cargo handling mineral yards, steel mill,and other high productivity demand applications
  • In aggregate site, coal loading and construction etc loosen material handling utilization applications,SEM660D can load more, move faster and burn less
  • Multiple work tools for selection
Model
Model SEM660D
Main Specifications
Rated Payload 6,000kg
Operating Weight with Standard Bucket 20,000kg
Bucket Capacity 3.3-5.5m³
Operating Specifications
Breakout Force 183kN
Engine
Engine Model WD10G240
Rated Power 178kW
SEM_PRODUCTS_SEM660D
SEM WL operation guide
SEM_PRODUCTS_SEM660D
WL Maintenance
SEM_PRODUCTS_SEM660D

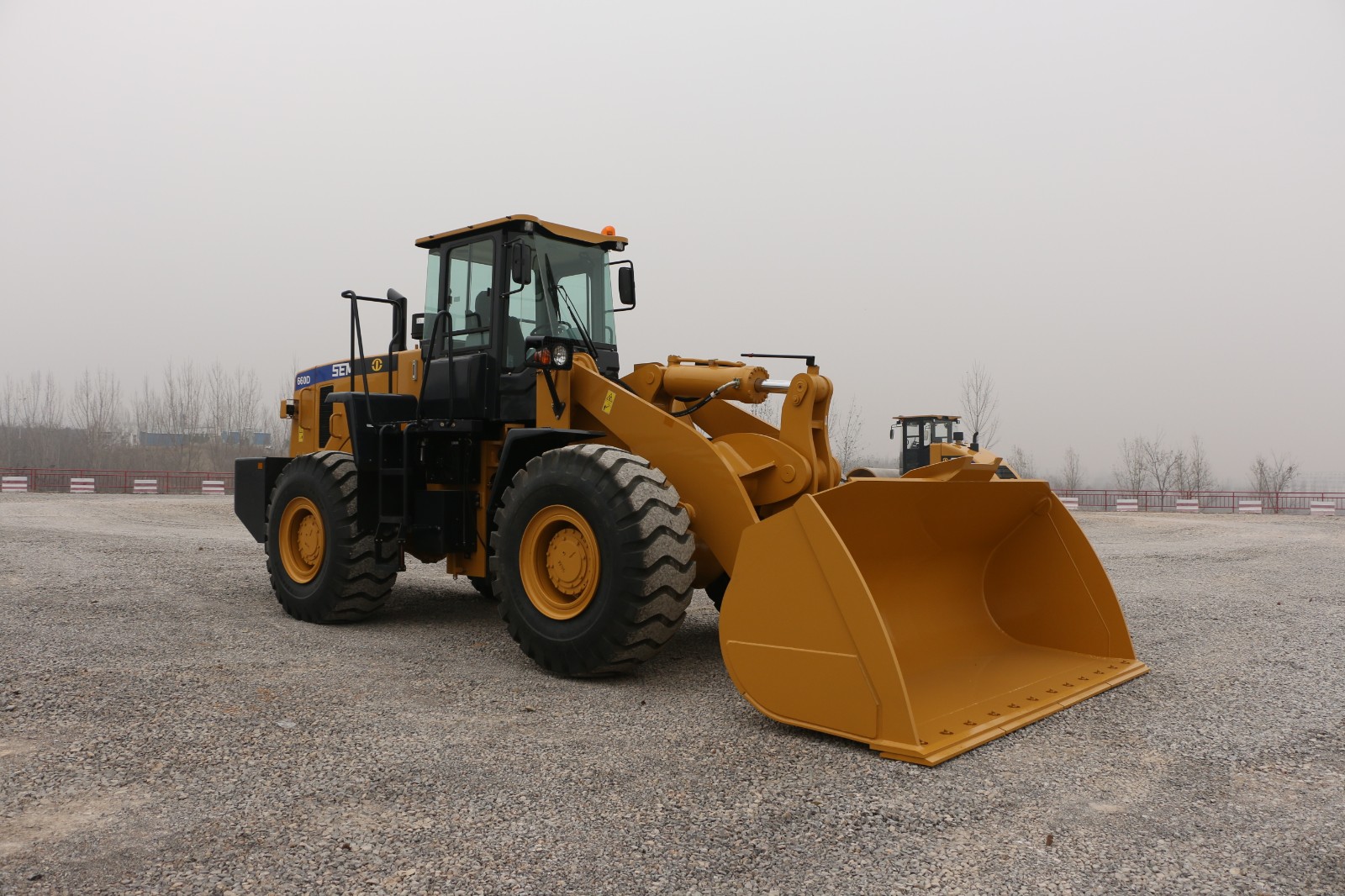

SEM660D-1

SEM_PRODUCTS_SEM660D

SEM660D-2

SEM_PRODUCTS_SEM660D

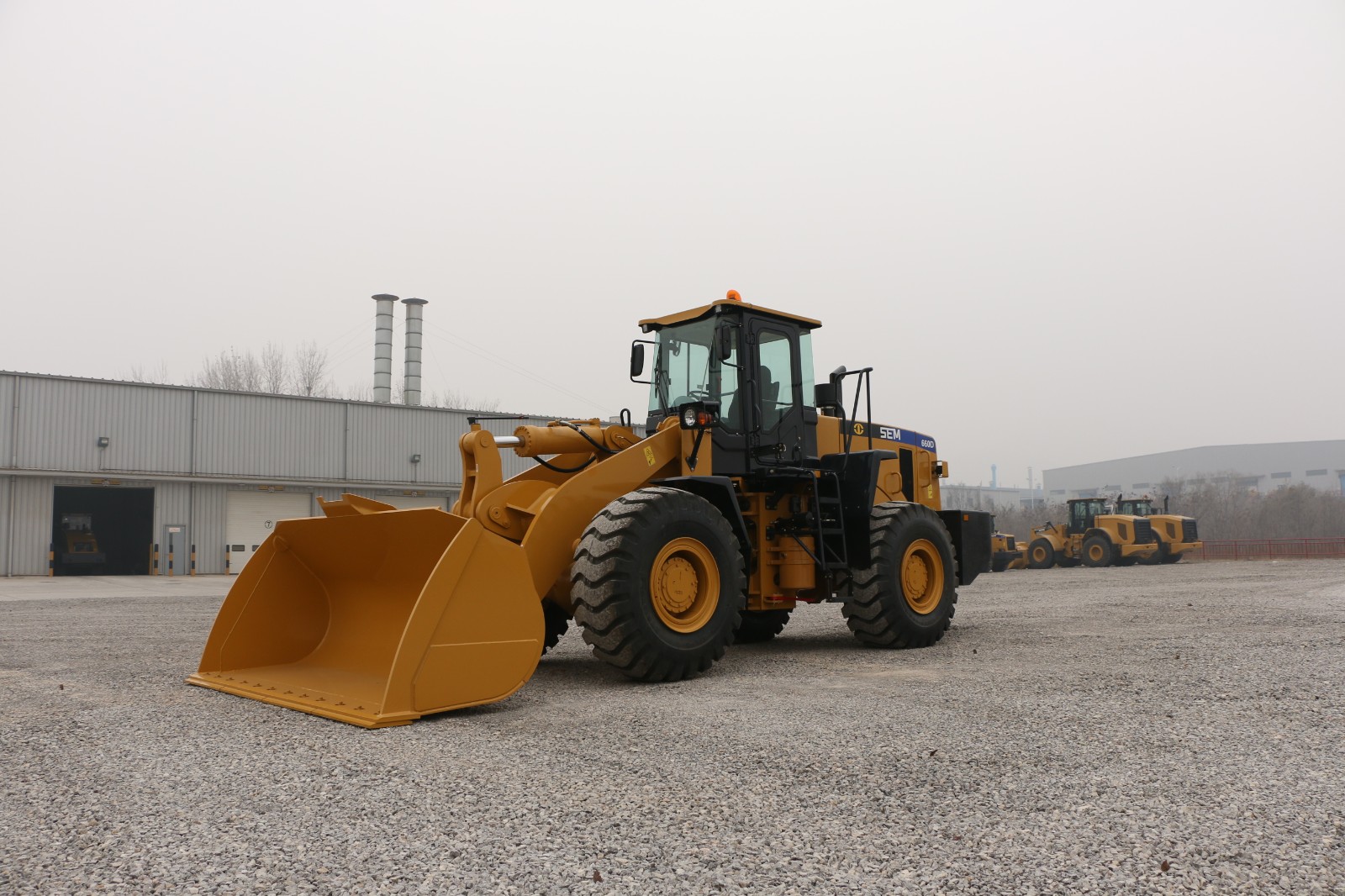

SEM660D-3

SEM_PRODUCTS_SEM660D

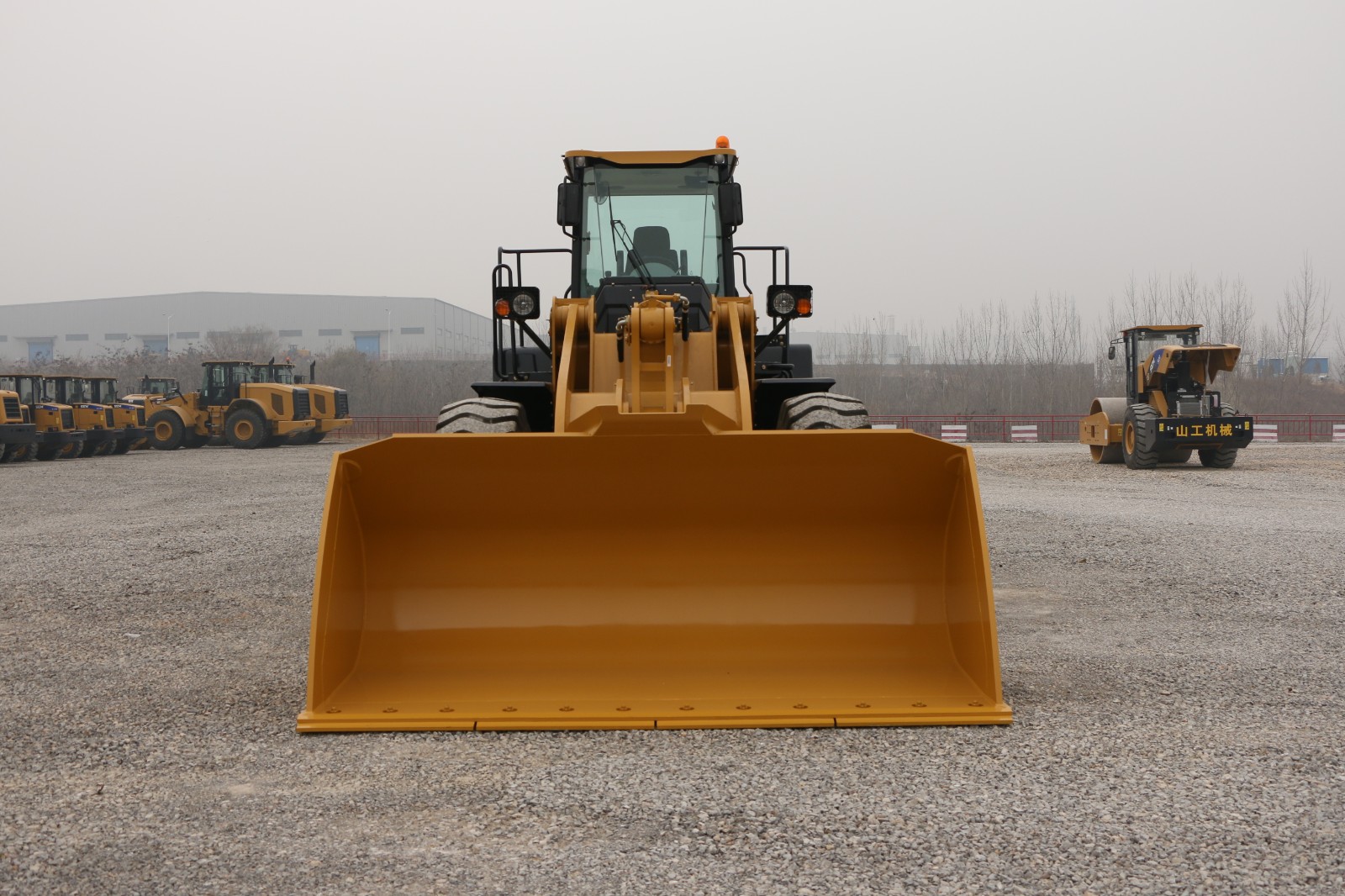

SEM660D-4

SEM_PRODUCTS_SEM660D

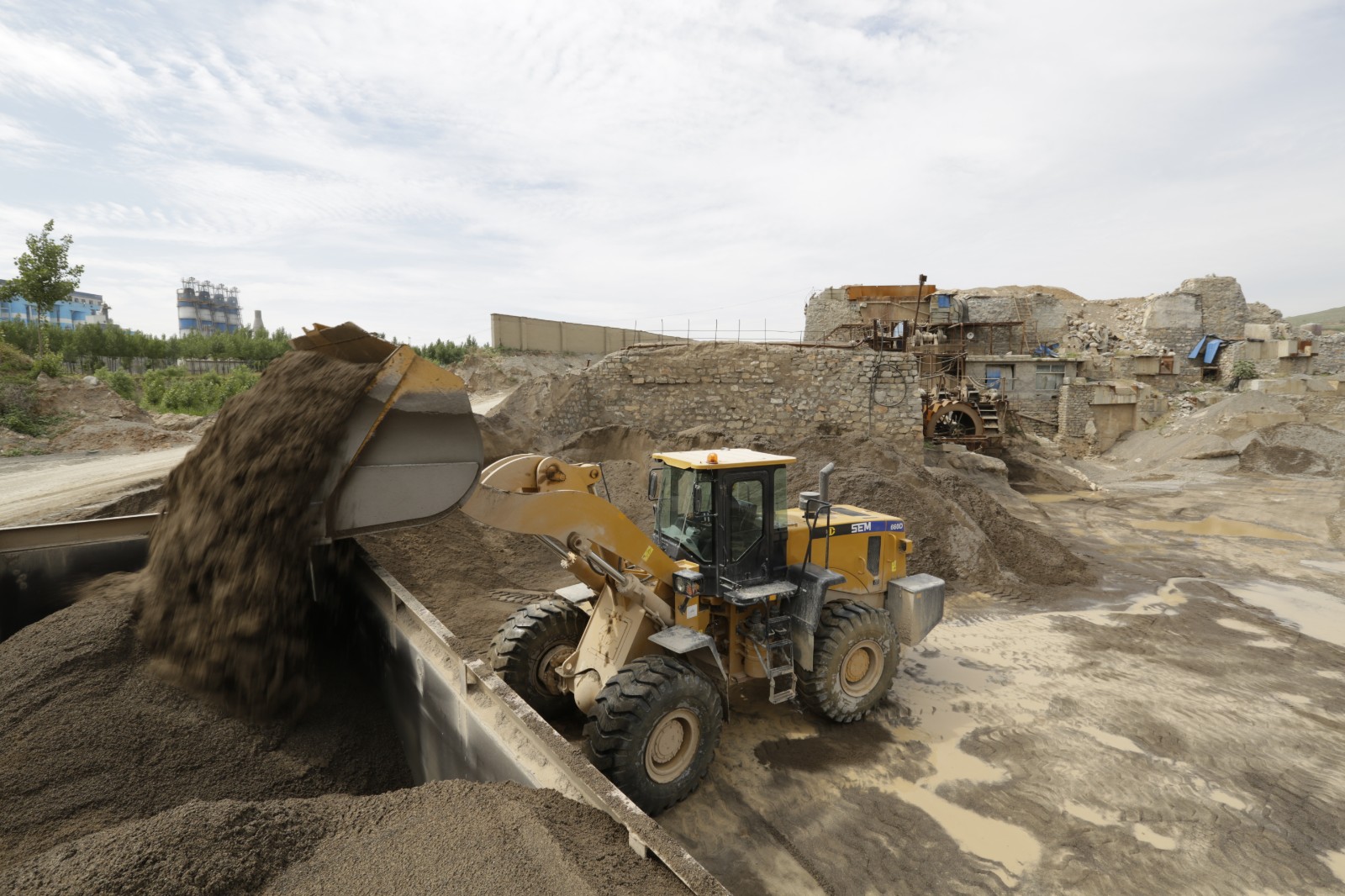

SEM660D Application-1

SEM_PRODUCTS_SEM660D

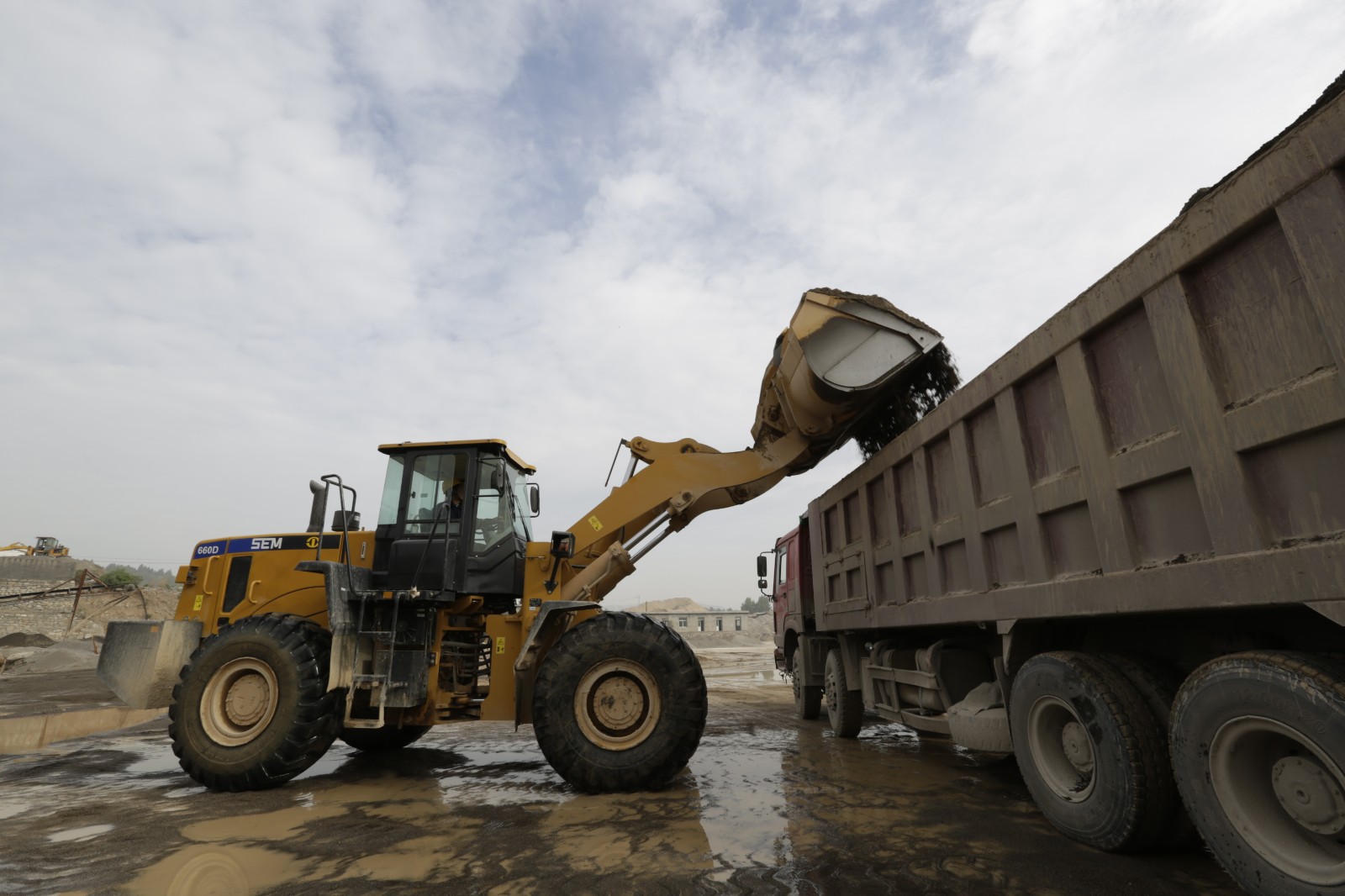

SEM660D Application-2

SEM_PRODUCTS_SEM660D

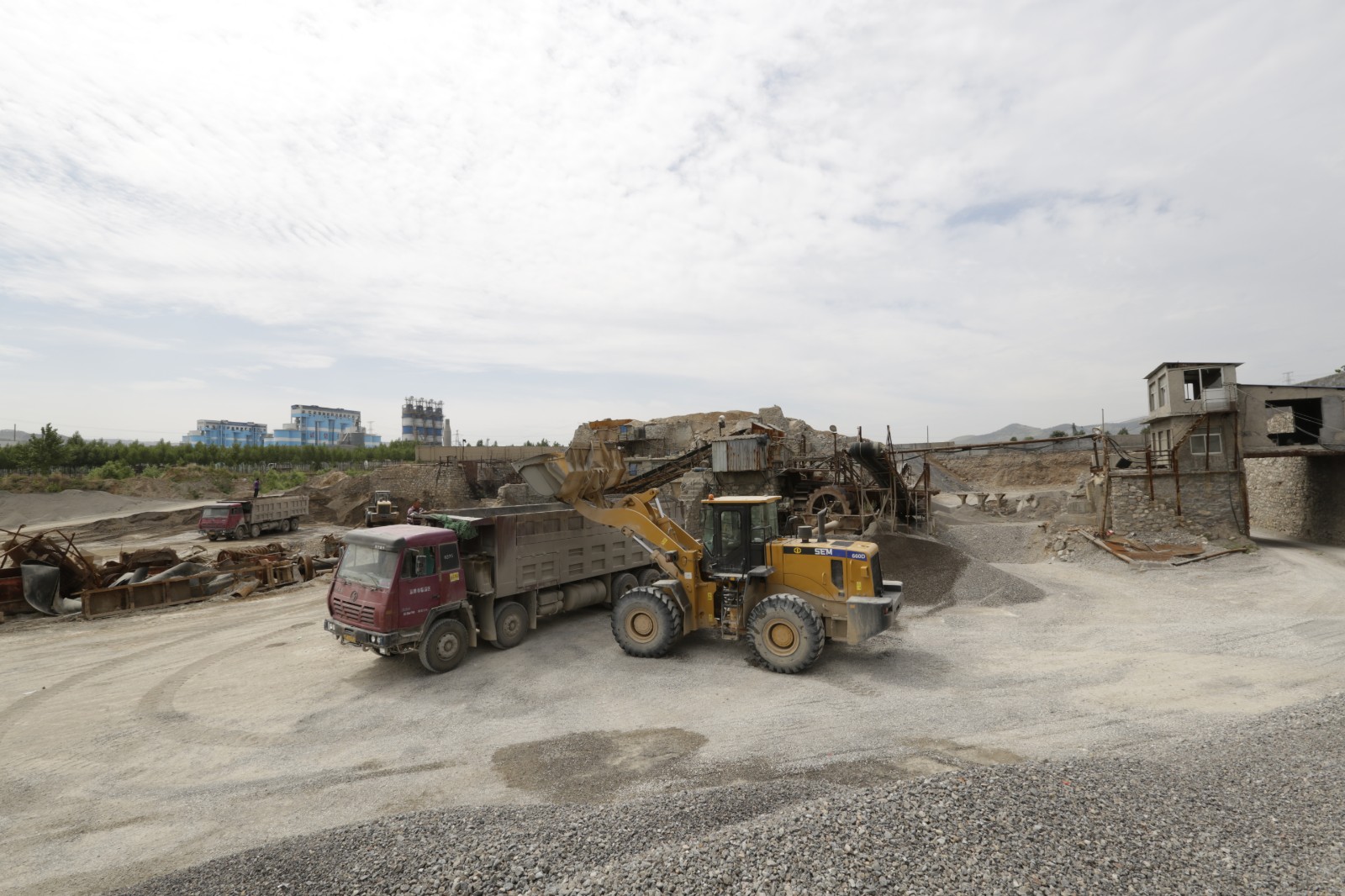

SEM660D Application-3
